Single-, Double-, Three-Beam Spunbond Lines

Single Beam Spunbond Line

Overview

Single Beam Spunbond Line



Process Flow Diagram

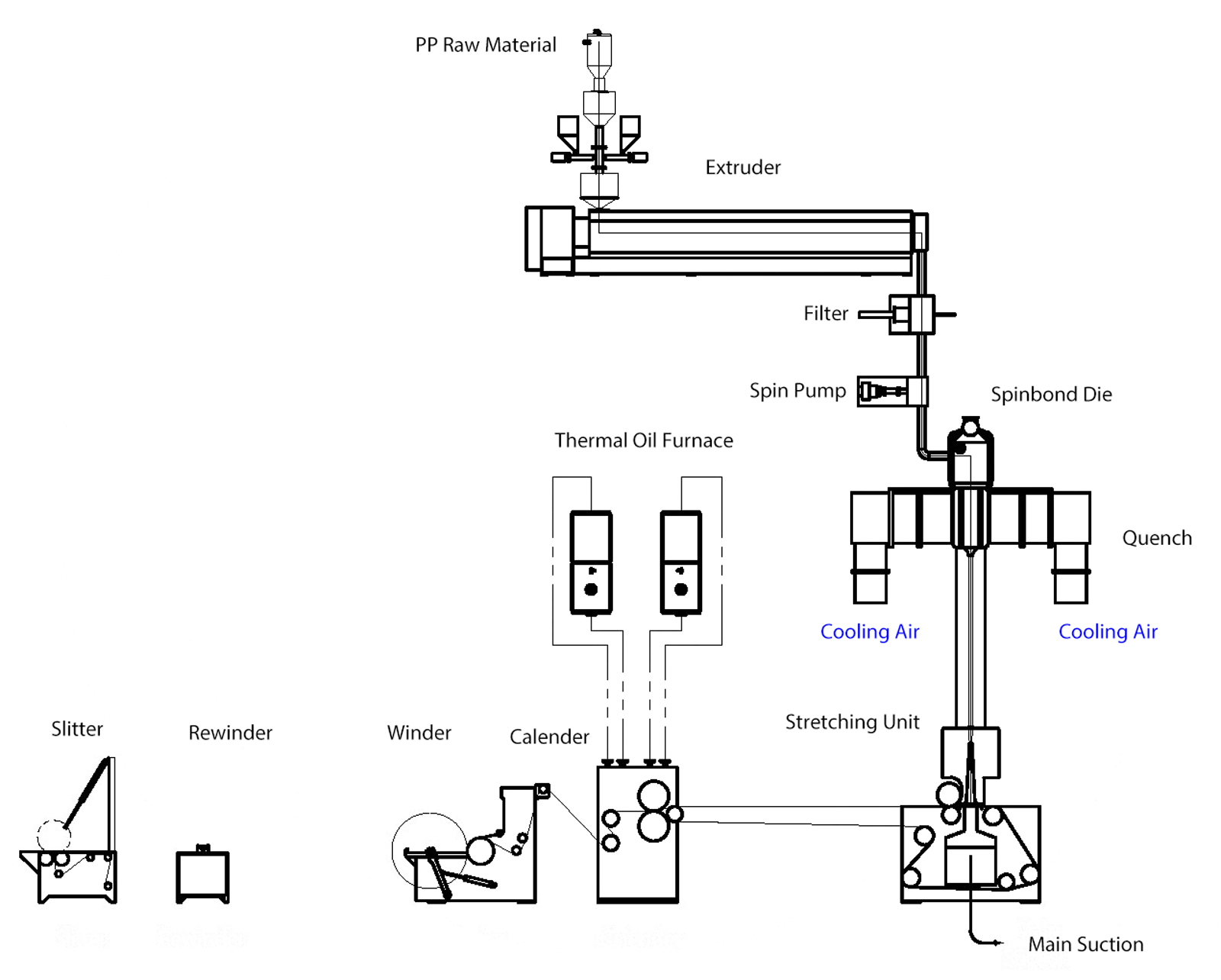

Single Beam Spunbond Line Process Flow Diagram

Main Specifications of Single Beam Spunbond Line

Effective Width (mm) 3200MM LINE 2400MM LINE 1600MM LINE
S Output (tons/year) 3000 2300 1500
GMS range (g/m2) 10-180 10-180 10-180
Max. speed m/min 200 200 200

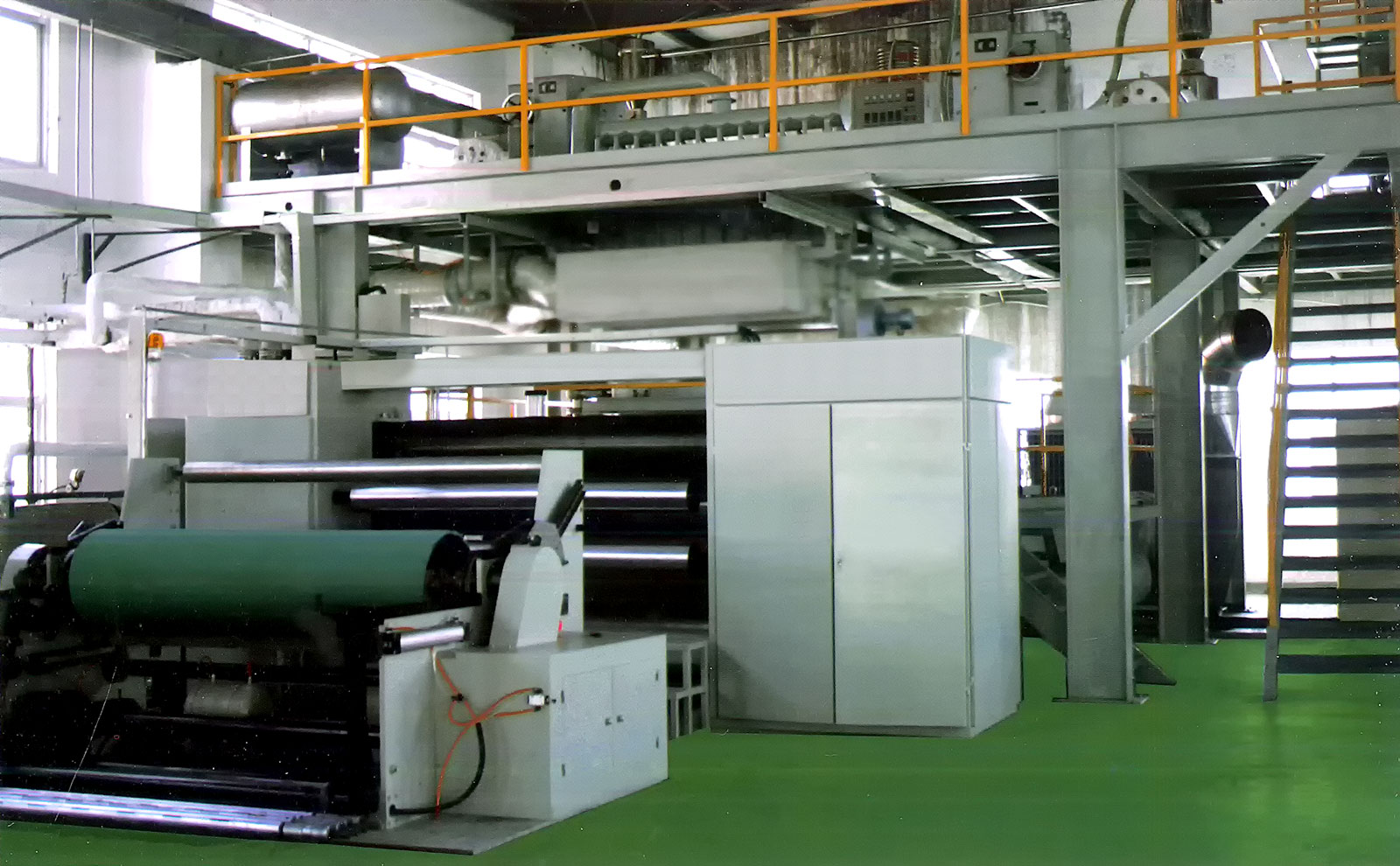

Installed Spunbond Line (S)

S line

Double Beam Spunbond Line

Overview

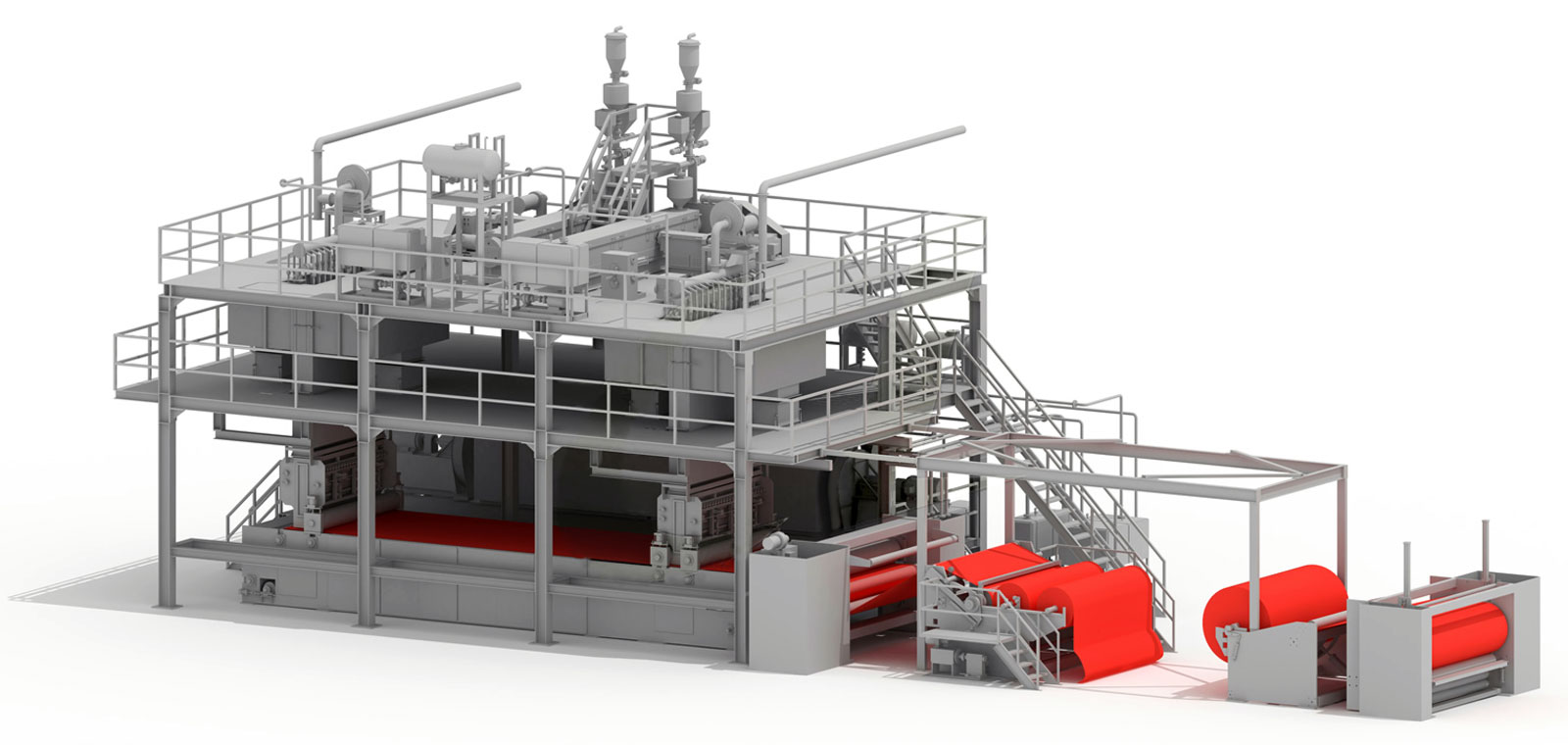

Double Beam Spunbond Line



Process Flow Diagram

Double Beam Spunbond Line Process Flow Diagram

Main Specifications of Double Beam Spunbond Line

Effective Width (mm) 3200MM LINE 2400MM LINE 1600MM LINE
SS Output (tons/year) 6000 4500 3000
GMS range (g/m2) 10-150 10-150 10-150
Max. speed m/min 400 400 400

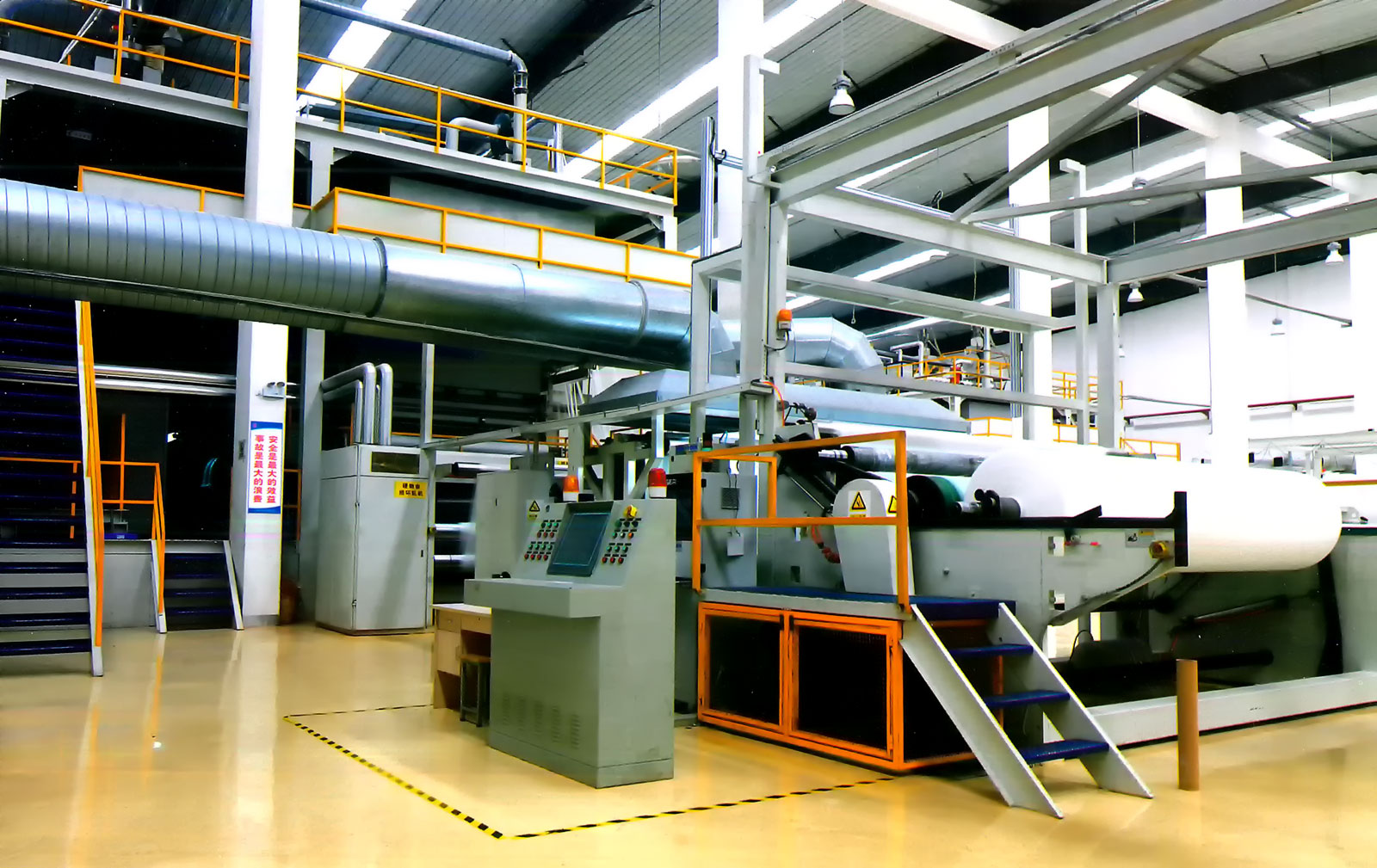

Installed Spunbond Line (SS)

SS line

Three Beam Spunbond Line

Overview

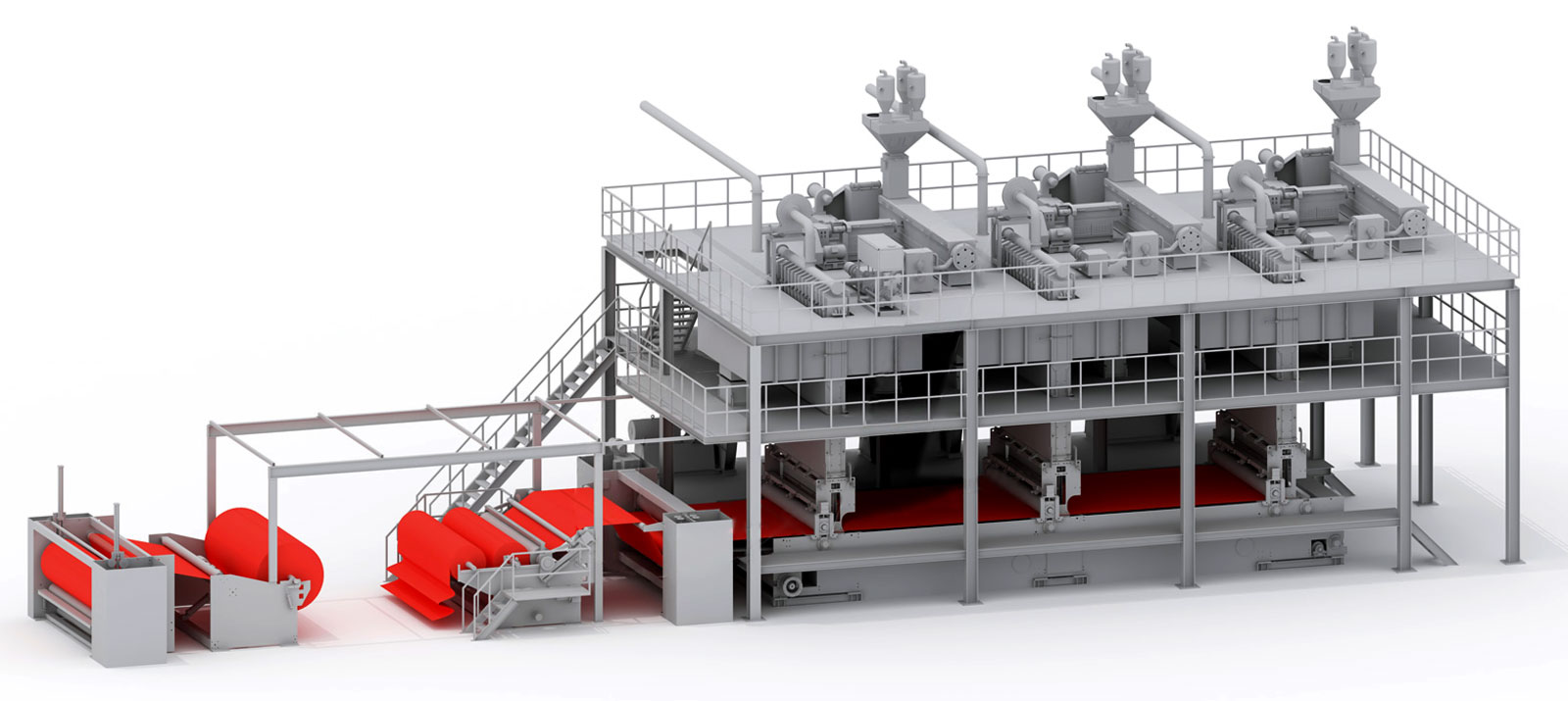

Three Beam Spunbond Line



Process Flow Diagram

Three Beam Spunbond Line Process Flow Diagram

Main Specifications of Three Beam Spunbond Line

Effective Width (mm) 3200MM LINE 2400MM LINE
SSS Output (tons/year) 10000 8000
GMS range (g/m2) 10-110 10-110
Max. speed m/min 550 550

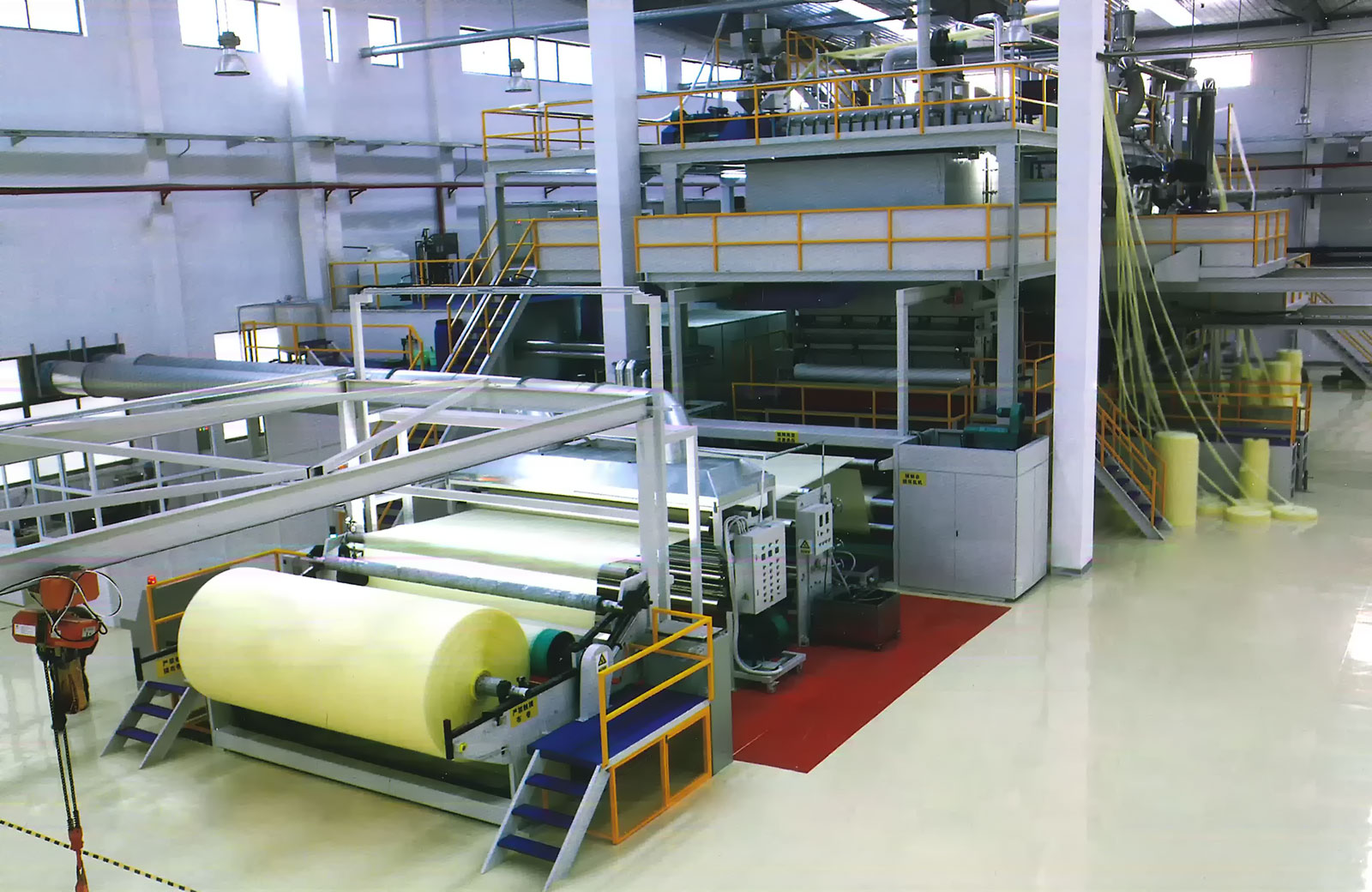

Installed Spunbond Line (SSS)

SSS line

Applications of Spunbonded Fabric

Applications of Spunbonded Fabric

Nonwoven hygiene products

  • Baby and adult diapers: Top sheets, back sheets, ears, tapes, landing zone
  • Female hygiene: Top sheets, wings
  • Cleaning wipes: Baby care, cosmetics, etc.

Nonwoven medical products

  • Surgeon's mask
  • Disposable garments
  • Surgical drapes
  • Shoe covers

Nonwoven furniture products

  • Beds: Mattresses, cushions, bed covers, disposal bedding
  • Seating: Upholstered backs, sub-paneling, intermediate layers, etc.

Nonwoven technical products

  • Geotextiles: Erosion protection, filtration, reinforcement, drainage, separation layers, embankment fortification etc. for streets, dikes, and farms
  • Structural engineering: Bitumen supports, roof insulation sheeting, diaphragms
  • Agriculture: Crop forcing nonwovens, insect protection, etc.
  • Automotive: Inner paneling, sound insulation, insulation, etc.

Nonwoven packaging products

  • Envelopes
  • Tea bags
  • Clothes packaging
