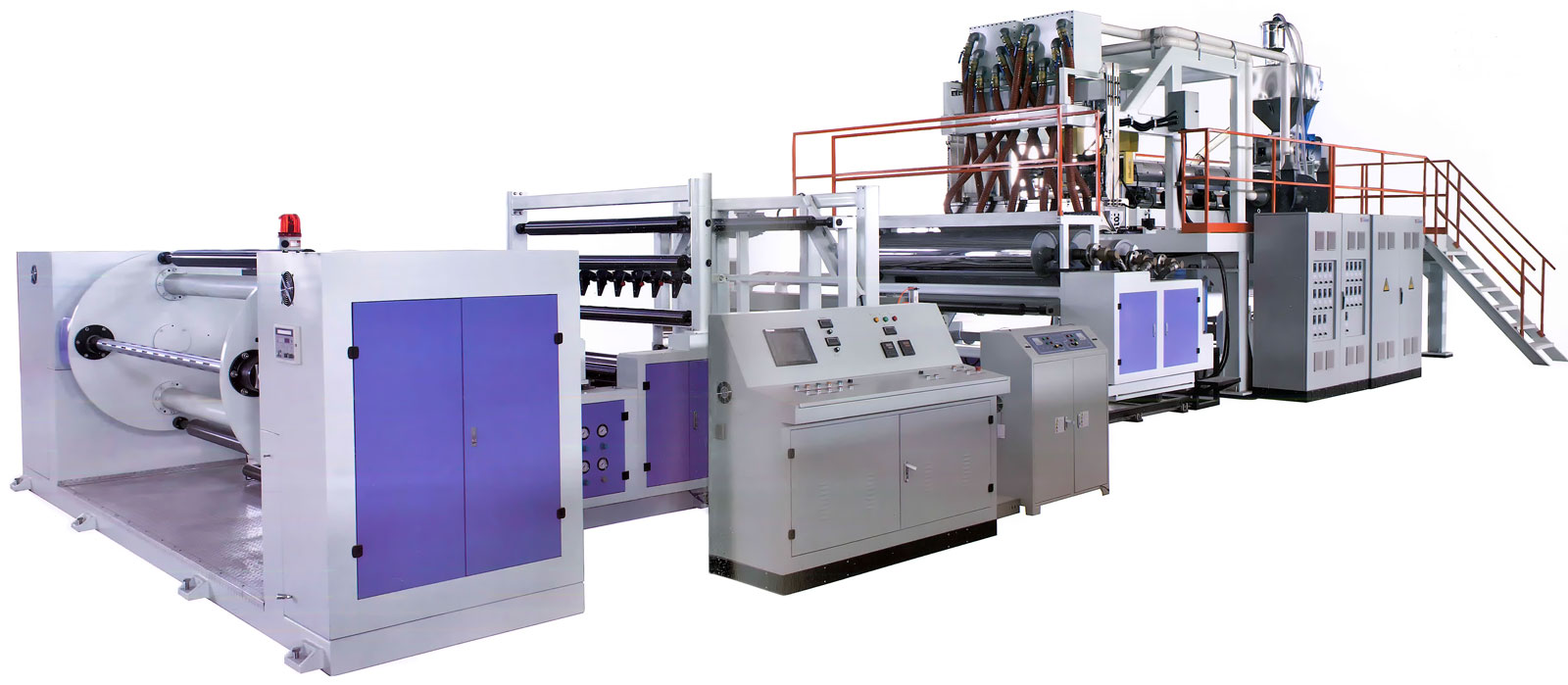

PEVA / EVA Cast Film Line
Introduction
The cast film line is designed to produce PEVA and EVA films for various applications. The most optimized design of extruder and T die guarantees high-performance extrusion and various levels of features and automation are available to best meet your needs. It accepts the combination of different resin materials such as EVA, LDPE, LLDPE, and HDPE to include their unique properties.
Application:
PEVA / EVA film products have various applications for shower curtain, gloves, umbrella cloth, table cloth, rain coat etc.
Features & Advantages
- any film width (up to 4000mm) at customer's disposable.
- easy to change embossing roll for various emboss patterns.
- very low variation of film thickness
- in-line film edge trim and recycling
- in-line extrusion coating is optional
- auto film winder with different size of air shaft
Overview
Technical Data
| Model No. | Screw Diameter | Die Width | Film Width | Film Thickness | Line Speed |
|---|---|---|---|---|---|
| E120-1500 | ø120 mm | 1800 mm | 1500 mm | 0.02 - 0.15 mm | 180 m/min |
| E125-2000 | ø125 mm | 2300 mm | 2000 mm | ||
| E135-2500 | ø135 mm | 2800 mm | 2500 mm |
