Filter Bag Production Lines

Automatic Filter Bag Production Line

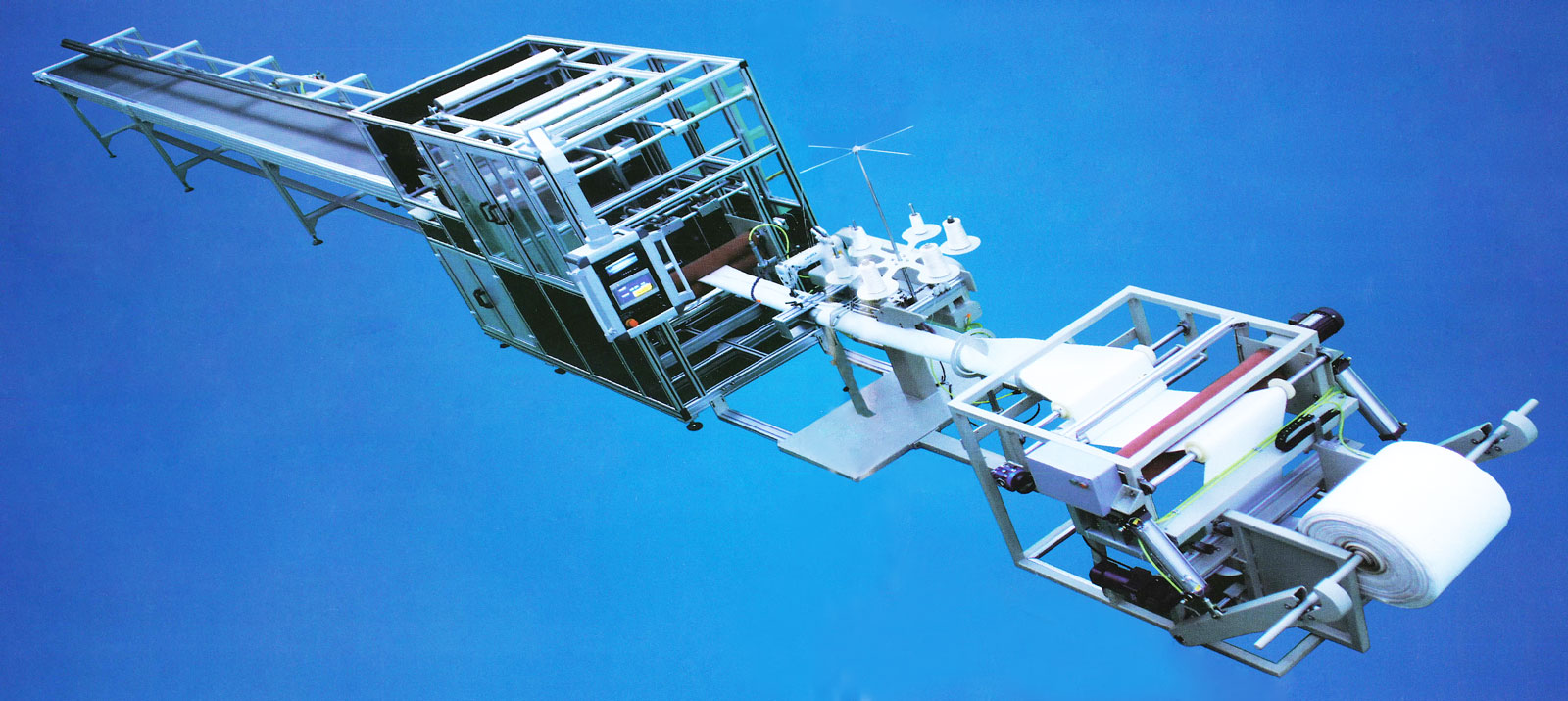

Automatic Filter Bag Production Line RGXX-1E

Upgraded version of Automatic Filter Bag Production Line
  • The main part of machine use aluminum alloy
  • The modified sewing head, tube holder and feed system is more stable; High speed sewing head with double timing belt to make sure the speed is much faster; PLC control the start and stop of sewing head, cooling needle and cleaning
  • Feeding part has automatic loading, automatic fix center and electric control guard plate functions
  • The whole machine controlled by servo and variable frequency, it is easy and convenience to adjust the speed
  • Main frame has manual fix center and electric fix center function to prevent fabric deviation
  • It has thread break sensor and fabric roll sensor, when thread break or fabric finished, machine stop automatically
  • Automatic count and stop
  • The tension of storage controlled by air cylinder, the tension can be adjust
  • Feeding part with sensor control fabric feeding, make sure fabric feeding is more smooth

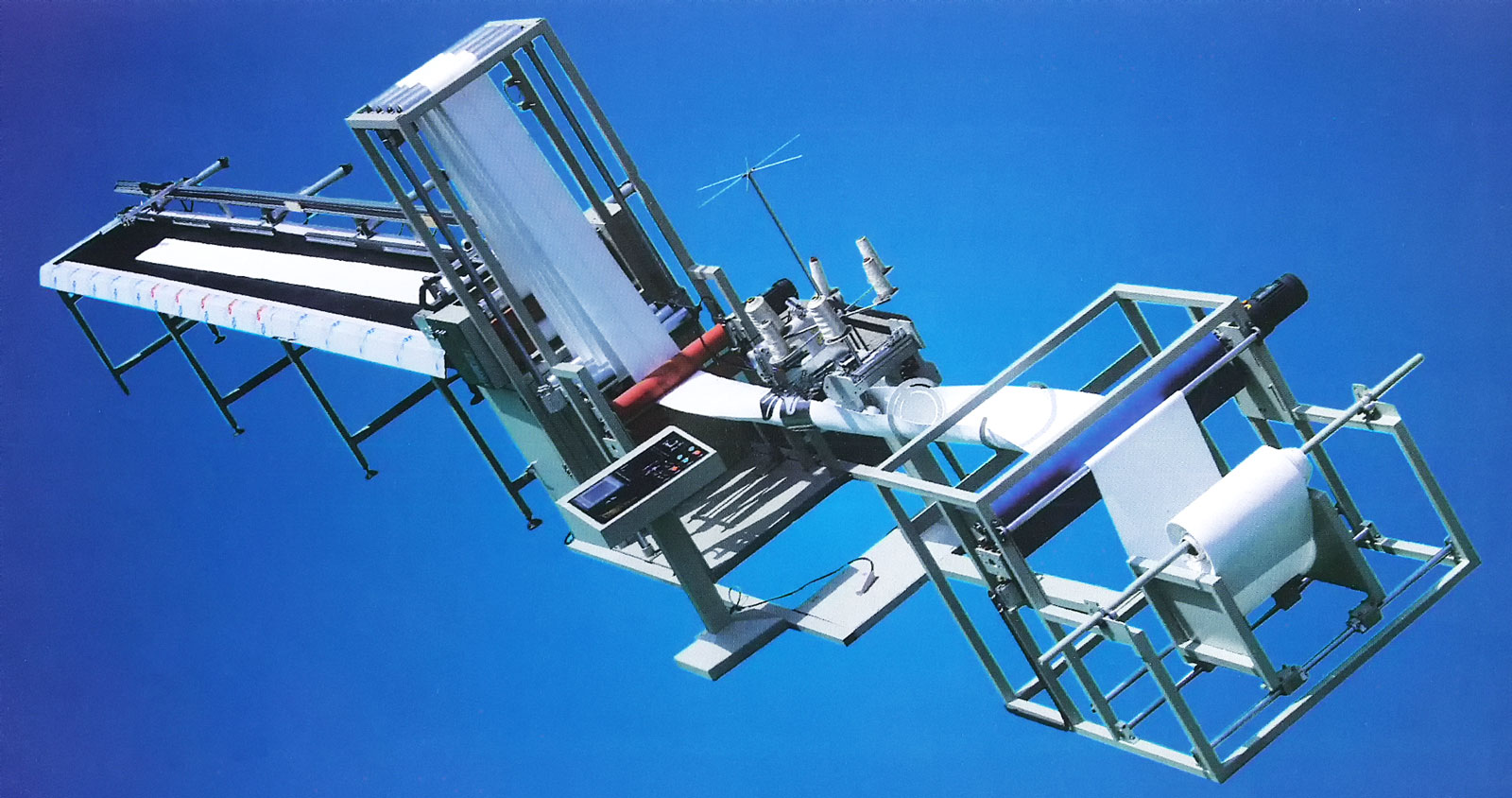

Automatic Filter Bag Production Line RGXX-1C

Automatic Filter Bag Production Line

Introduction

Automatic filter bag production line is for dust liter bag sewing, relative to manual sewing the needle gauge is uniformity, diameter stability, non-warped is easy for put on filter cage. It can reduce labor cost and fast sewing speed can reduce labor intensity.

Application

Woven and Non-woven fiberglass, FMS, PPS, polyester and etc.

Features

  • Modified original sewing head, added a short arm and tube hold on it.
  • Intelligence operation system can adjust as you required.
  • Import advanced setting and reduce speed device technology for exact cutting.


Automatic Liquid Filter Bag Production Line

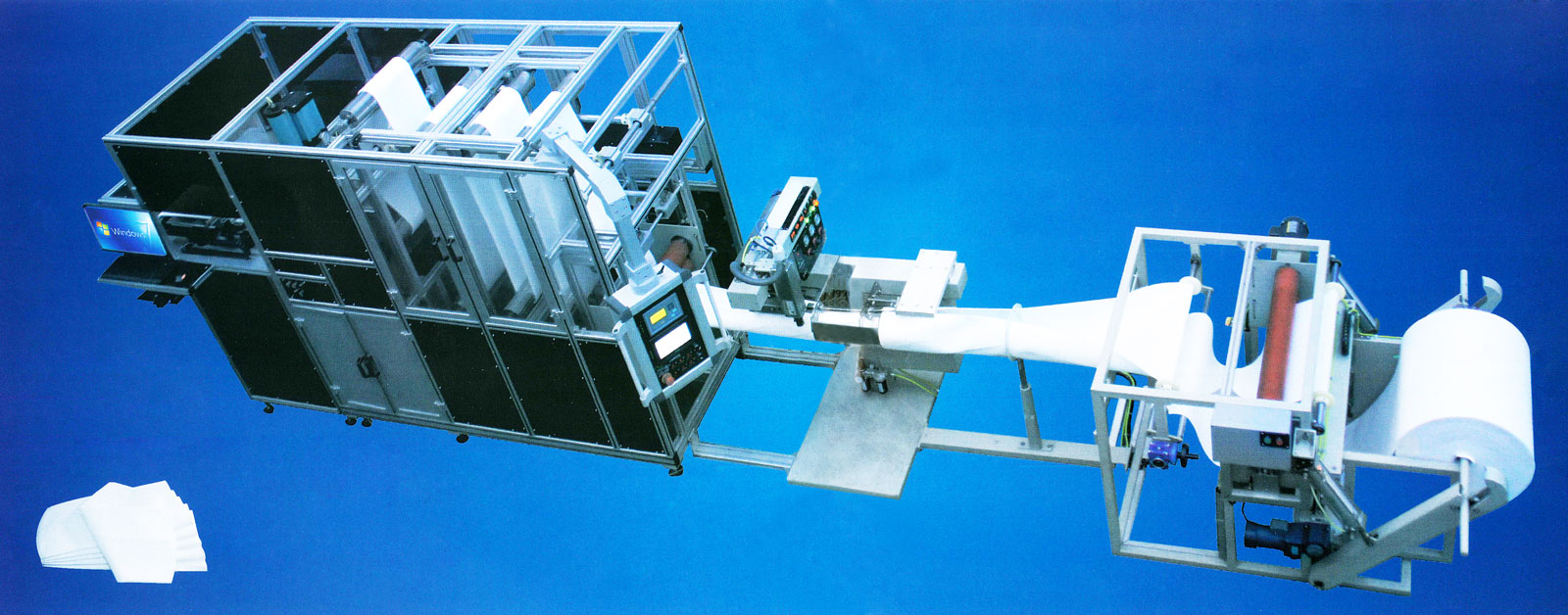

Automatic Liquid Filter Bag Production Line RGSL-2

Automatic Liquid Filter Bag Production Line

Second Generation Liquid Filter Bag Production Line uses full aluminum alloy frame and full closed design, high production efficiency, easy to operation and maintenance. No need knife mould to cut V, U and Straight shape, it saves time cost and increases the production efficiency.

This machine has 5 function part: Automatic Feeding Part, Hot Welding Head, Storage Part, Ultrasonic Part and Laser Cut Part.

  • Automatic loading fabric, automatic stop when fabric roll finished.

    The auxiliary feeding roller working with motor, it can reduce the resistance when drawing the fabric; There are two electric control plates to prevent the fabric roll to sides and make sure the fabric roll still in the center when feeding;

  • The hot welding head is professional for tubular filter tube. It has independent air fan design to protect heater.
  • Storage part has tension control, manual and electric fix center function to make sure filter tube is more smooth and prevent fabric deviation.
  • The ultrasonic mould made by aviation aluminum with stable performance and long life. Power supply use the most advanced AFC Technology, it suit different size and shape mould. Computer monitor each program, highly adaptable and in-built kinds of protection system.
  • Cutting part consist of servo motor feeding system and laser cut system, it has a computer to operate the laser software.

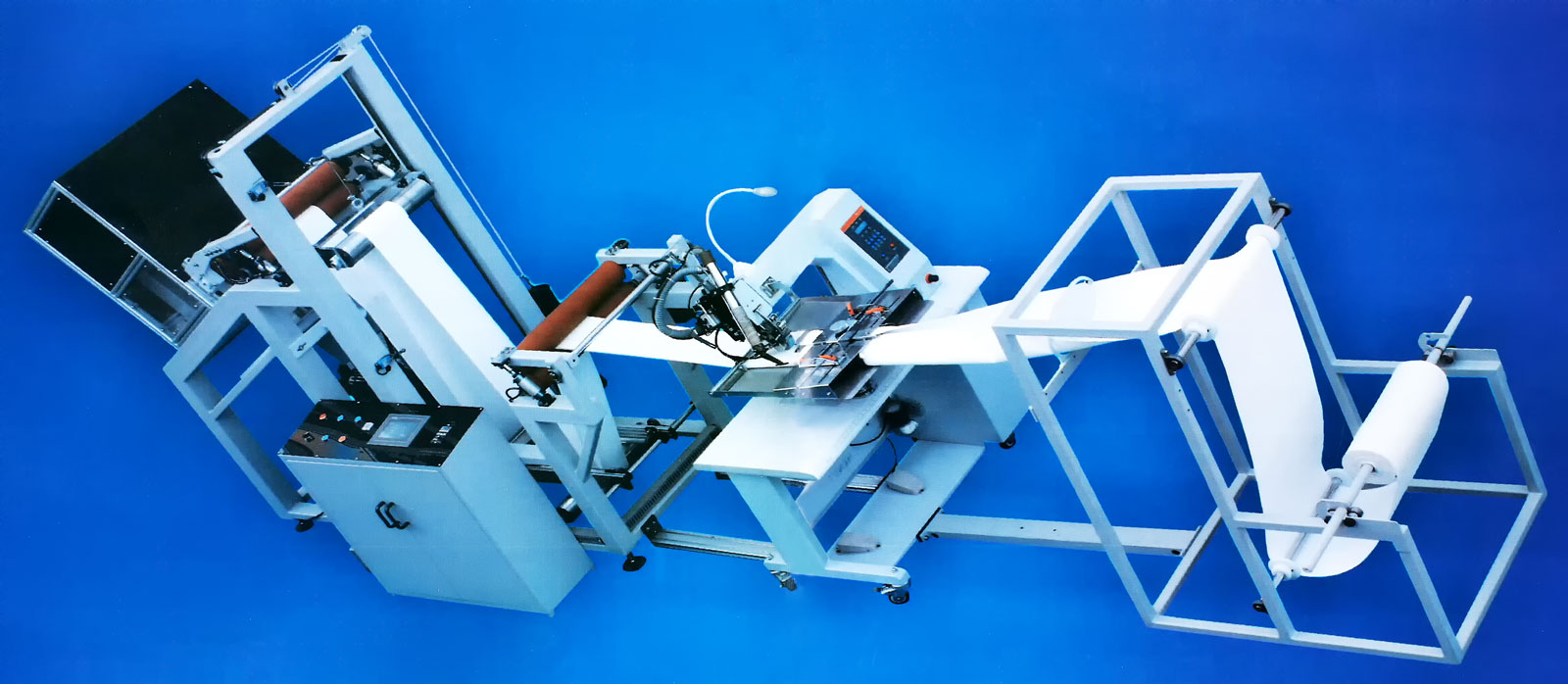

Automatic Liquid Filter Bag Production Line RGSL-1

Automatic Liquid Filter Bag Production Line

This machine is a professional design for produce high precision liquid filter bag, it adopt to seamless welding technology: hot air welding the bag body, ultrasonic the bag bottom, pressure knife to fixed length cut.

This machine has 5 function part:

  • Feeding part
  • Hot welding head
  • Storage part
  • Ultrasonic part
  • Cutting part

Features

  • Feeding part has drawing and sensor control function to ensure fabric can feed smoothly according the hot welding speed.
  • The hot welding head is professional for tubular filter tube. It has independent air fan design to protect heater.
  • Storage part has tension control and fix center device to make sure filter tube is more smooth and prevent fabric deviation.
  • The ultrasonic mould made by aviation aluminum with stable performance and long life. Power supply use the most advanced AFC Technology, it suit different size and shape mould. Computer monitor each program, highly adaptable and in-built kinds of protection system.
  • Cutting part consist of servo motor feeding system and pressure knife. The knife is easy to disassembly and to maintenance.

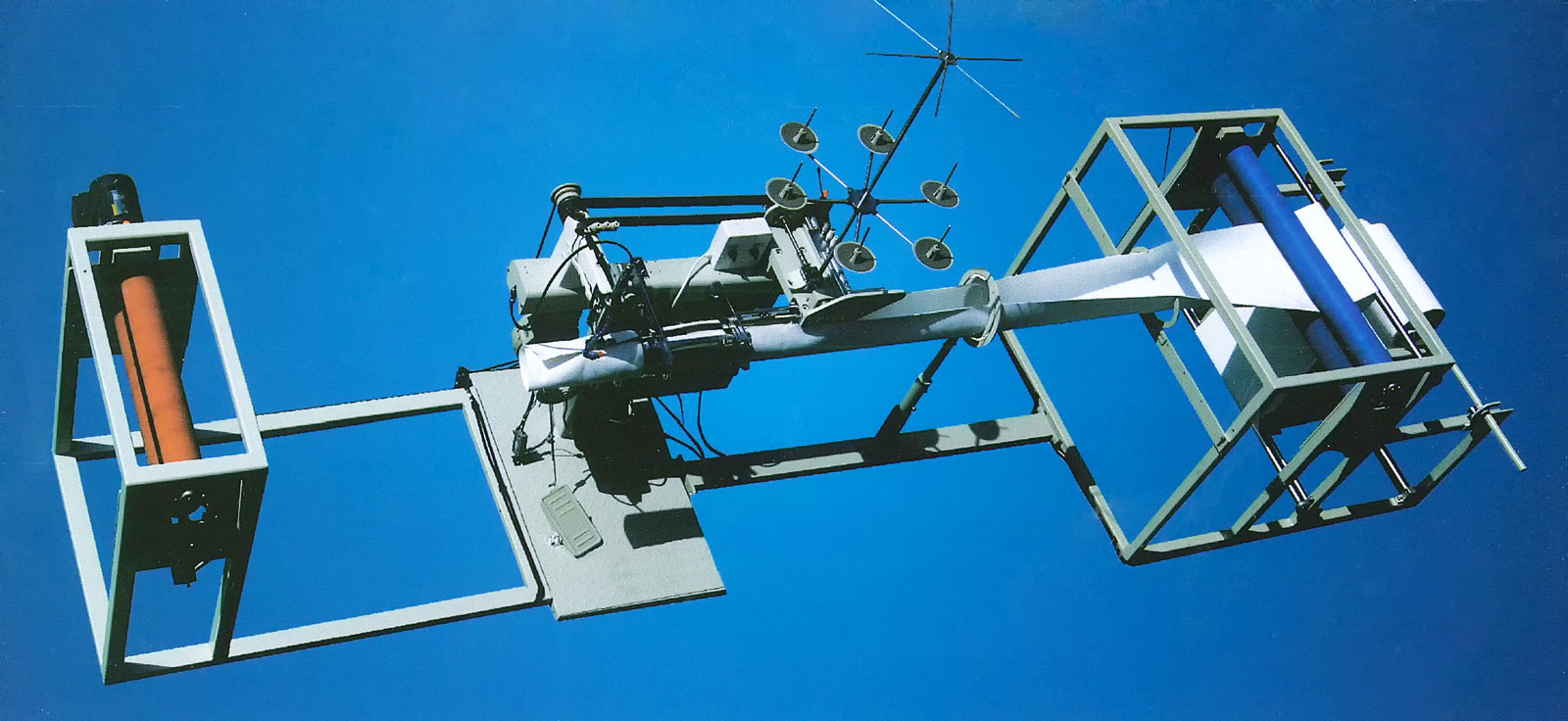

Semi-automatic Filter Bag Production Line RGBX-S

Semi-automatic Filter Bag Production Line

Semi-automatic is a kind of simplified automatic production line. It has feeding part, sewing part and drawing part.

Modified sewing head which is same as on automatic production line to ensure stable working.

The high production efficiency also can save a lot of labor cost.
